Miniature Horse Stalls

Mini-Modular Horse Stalls (these stalls do NOT require support posts)

Miniature horse owners have been asking us for a superior mini-stall for the small horses, and here it is! Our modular construction allows you to build your stalls to virtually any configuration you need!

 Our modular panel construction allows you to build a complete 4' x 8' stall in less than 30 minutes! All connectors are supplied with your stall at no extra charge. Simply order the number of panels and swing gate frames you need. NO Support posts needed! All steel components are enamel coated black. Some examples are shown below or call 1-800-335-1880 for assistance.

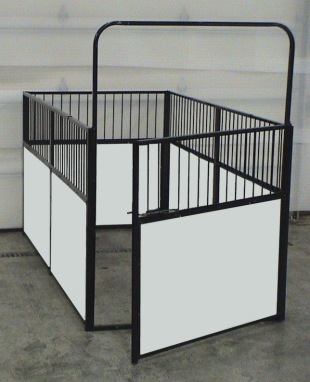

 4 ft. W x 8 ft. L Mini Stall ( no lumber included)

1ea. CM443 Swing Gate Frame

6ea. CM445 Modular Panels

$695.00 or Call Toll Free 1-800-335-1880

 4 ft. W x 8 ft. L Mini Stall ( Poly-Kick included)

1ea. CM443 Swing Gate Frame

6ea. CM444 Modular Panels

$815.00 or Call Toll Free 1-800-335-1880

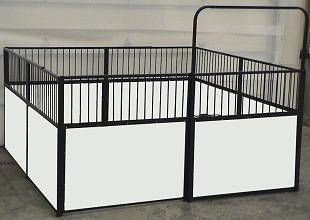

 8 ft. W x 8 ft. L Mini Stall ( no lumber included)

1ea. CM443 Swing Gate Frame

8ea. CM445 Modular Panels

$905.00 or Call Toll Free 1-800-335-1880

8 ft. W x 8 ft. L Mini Stall ( Poly-Kick included)

1ea. CM443 Swing Gate Frame

8ea. CM444 Modular Panels

$1065.00 or Call Toll Free 1-800-335-1880

Create your own stall by ordering the components you need.

 Our grilled modular panels are a great combination of strength and elegance! Each panel measures 4 ft x 4 ft. and weighs only 23 lbs. Each panel sits 3/4" off the ground for easy cleaning. The frame is made of 1" square tubing with 1" angle iron panel receivers for superior strength and durability. The grills measure 15" high, made of solid 5/16" steel rods set 3" on center (2 5/8" between bars). Enamel coated black.

 Our model CM444 panel (shown left) includes a 3/8" thick corrugated POLY-KICK panel already installed that is resistant to damage and makes stall cleaning and disinfecting easy.

CM444 Panel w/ Poly Kick. $125.00ea. or Call Toll Free 1-800-335-1880



 Our model CM443 swing gate frame comes with everything you need to make one of our grilled panels into the door of the stall. The curved arch measures 6 ft. high with two hinge pins securely welded in place. This kit includes a positive spring-loaded latch system.

CM443 Swing Gate Kit. $65.00ea. or Call Toll Free 1-800-335-1880


 This modular panel is designed for the horse owner who likes the look of wood in their stalls. Simply cut your own wood (up to 3/4" thick) and secure it into the panel receivers with screws. Each panel measures 4 ft. x 4 ft. and weighs only 22 lbs. Each panel sits 3/4" off the ground for easy cleaning. The frame is made of 1" square tubing with 1" angle iron panel receivers for superior strength and durability. The grills measure 15" high, made of solid 5/16" steel rods set 3" on center (2 5/8" between bars). Enamel coated black.

 Our model CM445 panel (shown left) accepts any lumber up to 3/4" thick.

CM445 Panel (no lumber included). $105.00ea. or Call Toll Free 1-800-335-1880

IMPORTANT SHIPPING INFORMATION!!! A minimum of $400 for mini-stall components is required for free shipping to a business address. A $75.00 shipping surcharge is added to shipments into the Mountain and Pacific Time Zones.

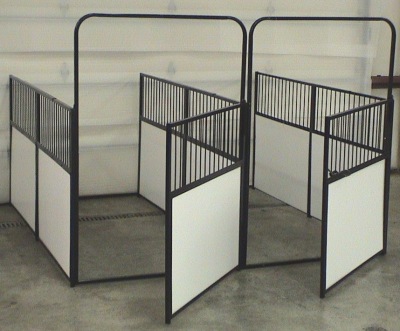

 8 ft. W x 8 ft. L Duplex Mini Stall ( Poly-Kick included) mounted to an existing wall.

2ea. CM443 Swing Gate Frame

8ea. CM444 Modular Panels

$1130.00 or Call Toll Free 1-800-335-1880

4ea. CM443 Swing Gate Frame

18ea. CM444 Modular Panels

$2510.00 or Call Toll Free 1-800-335-1880

4ea. CM443 Swing Gate Frame

14ea. CM444 Modular Panels

$2010.00 or Call Toll Free 1-800-335-1880





 3ea. CM443 Swing Gate Frame

20ea. CM444 Modular Panels

$2695.00 or Call Toll Free 1-800-335-1880

 3ea. CM443 Swing Gate Frame

12ea. CM444 Modular Panels

$1695.00 or Call Toll Free 1-800-335-1880

Our modular mini-stalls allow you to move the entire stall front or wall when your needs change!
.
